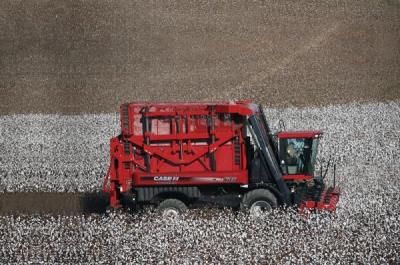

ENGINE:
Diesel, 6 cylinder, 6TAA-9004, 365 H.P. (272 kW) Includes wastegate turbocharger and charge air intercooler Complies with EPA Tier III emissions requirements 200 gallon (756 L) fuel tank Coolant filter-conditioner Air filter - dual stage, dry type w/aspirator and service indicator 185 AMP alternator Two 12 volt batteries - 950 CCA each Water trap fuel filter and fuel cooler
TRANSMISSION, BRAKES, FINAL DRIVES:
Ground Speeds: 3-speed hydrostatic drive 1st 0-4.0 mph (0-6.3 kph) 2nd 0-4.8 mph (0-7.7 kph) 3rd 0-16.5 mph (0-26.5 kph) (transport)
Hydraulic power disc brake - dual pedal
Electrically controlled, mechanically applied park brake Final drive, Super heavy duty
OPERATOR'S CAB:
General Focalized cab suspension Right side window/service door Heater and air conditioner Automatic temperature control, electronic heating, ventilation and air conditioning control w/infinitely variable fan Pre-cleaner and pressurizer fan Tinted glass and sun visor Alert horn Two dome lights and right console light Steering column - floor and upper pivot Single blade windshield wiper w/2-speeds Air suspension seat w/seat belt Adjustable right console (floats with seat) Padded instructional seat w/seat belt and storage compartment Variable pressure moistener system with "flush" capabilities Operator presence system Basket/drum function selector Beverage holder "Radio Ready" - includes two speakers, wiring and antenna Switched/Unswitched auxiliary power ports Machine back-up/basket lower alarm Instrumentation and Controls Multifunctional propulsion control lever: drums raise/lower, basket door open/close, basket raise/lower, and basket unload A-Post instrument cluster (back lit) w/gauges warning lights and audible alarm Gauges Voltmeter Fuel level Coolant temperature Warning Indicator Lights Low voltage Oil pressure Coolant temperature Hydraulic oil reservoir level Hydraulic oil temperature A/C system Parking brake - engage/low pressure Drum service Air filter restriction Water in fuel Basket full Air intake temperature Engine stop Engine grid heater Electronic Digital Data Center (w/Touch Pad) Engine speed (RPM) Fan speed (RPM) Ground speed (MPH/KPH) Engine hourmeter and fan hourmeter Area measure (acre or hectare) Moistener system pressure Tire size to ground speed calibration Cotton drum monitor Drum rotor slippage/stall detection at each rotor Cotton flow blockage detection at each doffer Picker bar lube indicator
LIGHTING:
6 halogen headlights (4 flood, 2 distance) 2 red rear taillights 4 combination amber flashing and turn signals Work lights - 3 unloading, 3 under cab, rear chassis, 2 right side of machine
DRIVE AXLE:
Wheel tread: 6 Row Wide - 82.6" (2098 mm) 500/95-R32 Duals Standard with 5" Wheel Spacer 6 Row Narrow - 88.6" (2250 mm) 500/95-R32 Duals Standard with 3" Wheel Spacer
STEERING AXLE:
4WD Standard (2 Speed) 6 Row Wide Wheel Tread – 82.6" 16.9-28TL 8PR R4 6 Row Narrow Wheel Tread – 90.6" 16.9-28TL 8PR R4
CHASSIS:
On board automatic Lincoln® brand central chassis and drum lube system w/2.1 gallon (7.9 L) reservoir On board picker bar lube system w/80 gallon (302 L) reservoir
PICKING HEAD:
ALL PICKING UNITS SHIP SEPARATE FROM BASE MACHINE Four or Six row drum picking units with mechanical Auto Guidance System Row spacing - 30" (762 mm), 32" (812mm), 36" (920 mm), 38" (965 mm), 40" (1016 mm) 12 bars - front and rear rotors positioned to pick from both sides of the plant 18 Spindles per picking bar Spindles - EXTENDA-WEAR PLUS™, 90 micron chrome plated (Qty 2592 for 6 row) RH and LH rotor covers Drum drive w/forward/reverse Protec-O-Matic clutch
Polyurethene non-contaminating doffers Torsion bar, adjustable Max Pick compressor sheets Automatic height control on #1, #3, #4, and #6 drums All-gear drive drums with no belts or chains High profile composite plant lifter bodies Hard surfaced drum lifter skid shoes Separate RH and LH drum lift Induced air flow conveyor system w/dual fans - one outlet and air source per rotor Nonreversible main drum drive shafts
BASKET:
Capacity: Up to 10,500 lbs. (4762 kg) or 1400 cu. ft. (39.64 cu. m) Vertical lift with power metered unloading Quick raise/lower telescoping basket lid Press type compactor with augers w/automatic and manual control Unloading height, up to 12’2” (3.71 m)
PRESSURE MOISTENER SYSTEM:
365 gallon (1380 L) polyethylene water tank Pressurized distribution system Oil resistant urethane moistener pads Water filtering system
Requirements for Operation:
THIS PRODUCT IS NOT AVAILABLE TO DEALERS HOLDING A LOW HORSEPOWER CONTRACT
NOTE: For other row configurations
and conversions, contact your local Case IH representative.
